Name: Welding Magnesium Alloys Pipe 2.0 Mm Mechanical Low Density
Brand: DOME
SKU: DM011
Price: 30 USD
Availability: InStock
Rating: 4.8 (155 reviews)

Home Products Magnesium Alloys

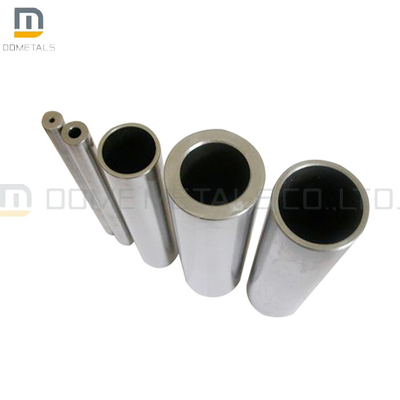

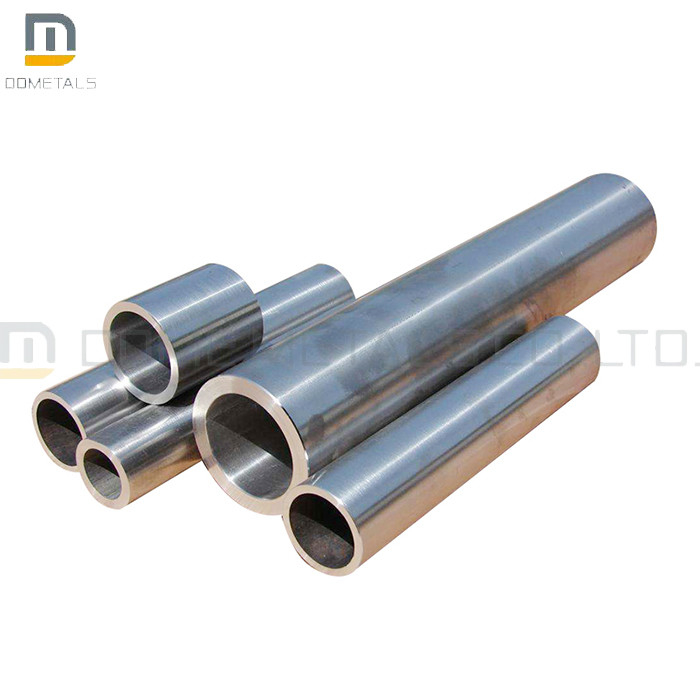

Welding Magnesium Alloys Pipe 2.0 Mm Mechanical Low Density

Product Details:

Place of Origin:	Zhengzhou,China
Brand Name:	DOME
Certification:	ISO9001,CE,SGS
Model Number:	DM011

Payment & Shipping Terms:

Minimum Order Quantity:	10KG
Price:	USD30~50/KGS
Packaging Details:	In carton, on pallet
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Name:	Factory Supplier Magnesium Alloy Pipe Magnesium Alloys Prices	Delivery Time:	Within 15 Days
Diameter:	0.5-5.0 Mm	Color:	Silver Grey
Usage:	Welding	Chemical Composition:	Magnesium Alloy
High Light:	Welding Magnesium Alloys Pipe , 2.0 Mm Magnesium Alloys Pipe , Mechanical Magnesium Alloys Pipe

Factory Supplier Magnesium Alloy Pipe Magnesium Alloys Prices

Introduction:

Magnesium is the lightest common structural metal with a density of 1.74g/cm3, in its solid state.

Magnesium is used in a wide variety of applications from medical and metallurgical to chemical and pyrotechnic . Magnesium alloy developments have traditionally been driven by aerospace industry requirements for lightweight materials to operate under increasingly demanding conditions. Magnesium alloys have always been attractive to designers due to their low density, only two thirds that of aluminum. This has been a major factor in the widespread use of magnesium alloy castings and wrought products.

A further requirement in recent years has been for superior corrosion performance, and dramatic improvements in this regard have been demonstrated for new magnesium alloys. Improvements in mechanical properties and corrosion resistance have led to greater interest in magnesium alloys for aerospace and other specialized applications, and alloys are now being specified on some famous projects.

Application Area:Construction,Sports&Leisure,Transportation,Household Appliances and etc.

Parameter:

Model	Chemical Component(%):
Type	Mg	Al	Zn	Mn	Si	Fe	Cu
AZ31B	Bal.	2.50-3.50	0.60-1.40	0.20-1.0	≤0.08	≤0.003	≤0.001
AZ61A	Bal.	5.80-7.20	0.40-1.50	0.15-0.50	≤0.10	≤0.005	≤0.005
AZ80A	Bal.	7.80-9.20	0.20-0.80	0.12-0.50	≤0.10	≤0.005	≤0.005
AZ91D	Bal.	8.50-9.50	0.45-0.90	0.17-0.40	≤0.08	≤0.004	≤0.001

Resistance temperature factor (correction factor)
20℃	100℃	200℃	300℃	400℃	500℃	600℃	700℃	800℃	900℃ \| 1000℃ \|
1	1.005	1.014	1.028	1.044	1.064	1.090	1.120	1.142	1.142 \| 1.150

Alloy	Thickness(mm)	Tensile strength Rm (N/mm²)	Yield strength Rp0.2 (N/mm²)	Elongation (A%) 50mm
AZ31B	0.3-3.00	260	170	24.0
AZ31B	3.00-10.00	230	140	18.0
M2M	0.80-3.00	190	110	6.0
	3.00-5.00	180	100	5.0
	5.0-10.00	170	90	5.0
AZ40M	0.50-3.00	280	180	17.0
AZ40M	3.00-5.00	260	160	14.0
AZ41M	0.80-3.00	290	190	17.0
AZ41M	3.00-5.00	270	170	17.0
ME20M	0.80-3.00	250	170	21.0
ME20M	3.00-10.00	220	140	15.0

Welding Magnesium Alloys Pipe 2.0 Mm Mechanical Low Density 0

Applications:

1. Automotive Industry:

Clutch and brake pedal support brackets.

Steering column lock housing:

Manual transmission housing.

2. Industrial Machinery:

Textile and printing machines. Magnesium alloys are used for parts that operate at high speed but must be lightweight to minimize inertial forces.

3. Material Handling equipment:

Dockboards, grain shovels, gravity conveyors.

4. Commercial applications:

Handheld tools, Luggage, computer housing, ladders.

5. Aerospace:

Magnesium Alloys are valuable for aerospace application because they are lightweight and exhibit good strength and stiffness at both room and elevated temperatures

6. Bicycle:

Magnesium Alloys are used in the bicycle industry due to its excellent stiffness and reduced weight compared to Aluminum.
