Name: Military Forging Magnesium Alloy Plate Sheet H24 Material
Brand: DOME
SKU: DM004
Price: 1 USD
Availability: InStock
Rating: 4.6 (150 reviews)

Home Products Magnesium Alloy Plate

Military Forging Magnesium Alloy Plate Sheet H24 Material

Product Details:

Place of Origin:	Zhengzhou,China
Brand Name:	DOME
Certification:	ISO9001,CE,SGS
Model Number:	DM004

Payment & Shipping Terms:

Minimum Order Quantity:	10Pcs
Packaging Details:	In carton, wooden case
Delivery Time:	3-25 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Product Name:	Military Forging Magnesium Alloy Plate Sheet AZ31B-H24 Material	Chemical Composition:	Magnesium
Alloy Or Not:	Alloy	Shape:	Sheet Plate Bar Board
Extrusion Plate Thickness:	5mm-105 Mm	Extrusion Plate Width:	10 Mm-400 Mm
Rolled Plate Thickness:	0.3mm-5mm	Rolled Plate Width:	10mm-500mm
High Light:	Magnesium Alloy Plate Sheet , H24 Magnesium Alloy Plate , Military Forging Magnesium Alloy Plate

Military Forging Magnesium Alloy Plate Sheet AZ31B-H24 Material

Introduction of Magnesium Alloy Plate:

Product Name	Military Forging Magnesium Alloy Plate Sheet AZ31B-H24 Material
Standard	AMS/ASTM/JIS/BS/ISO
Brand	AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A
Thickness	0.3mm-200mm
Width	customized Max.width 3000mm
Length	Customized
Application	transportation (automobiles, motorcycles, bicycles, rail transit, aviation); electronic products (computers, mobile phones, digital cameras, etc.); medical equipment (wheelchairs, crutches, rehabilitation fitness equipment, etc.) aerospace; textile High standards and diversified demands in the fields of printing machinery and automobiles.
Lead time	3 to 25 working days
Packing	Wooden pallet or according to customer's request

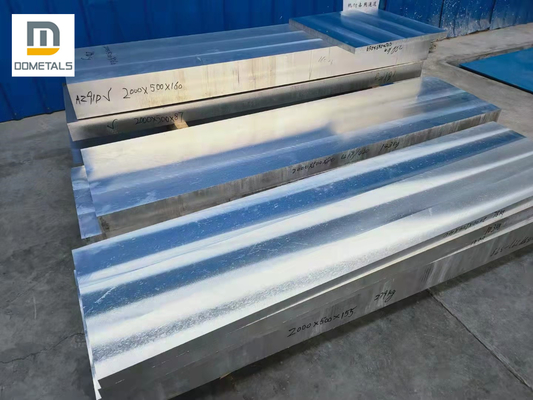

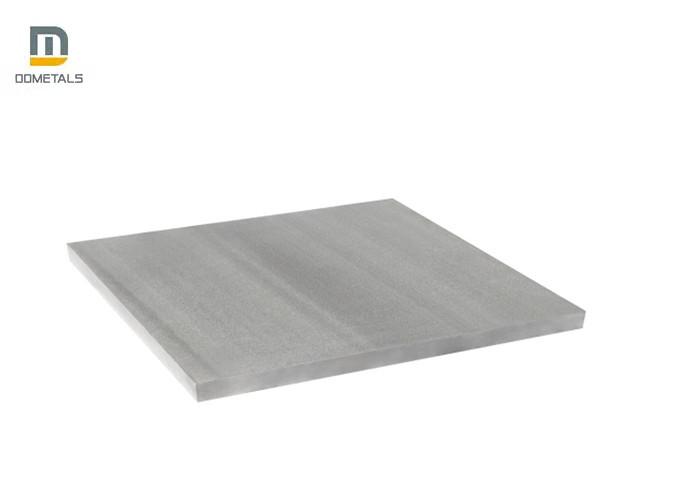

Details of Magnesium Alloy Plate:

Specification of magnesium alloy:
Magnesium Alloy Plates/sheet	classify	specification
	Brand	AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A
	Sheet	Thickness:0.3-7.9mm Customized Max.width 600mm
	Medium and heavy plate	Thickness:8-15mm Customized Max.width 1500mm
	Thick plate	Thickness:15-200mm Customized Max.width 3000mm
Magnesium Alloy Bar/Rod	Brand	AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A/Mg99.95
	Extrusion Bar	φ3-φ130*3000(Customized)
	Cast round bar billet	φ93-φ600*4500(Customized)
Magnesium alloy profiles	Size	Customized

Features of Magnesium Alloy Plate:

1. Good recovery: As long as the cost is equivalent to 4% of the new price, the magnesium alloy products and waste can be recycled.

2. Stable resources provide: Magnesium element in the reserves in the crust, most of the magnesium feedstocks are refined in the sea water, so its resource is stable and sufficient.

3. Light: Magnesium alloy is the lightest in all structures in all structures, its specific gravity is 68% of the aluminum alloy, 27% of the zinc alloy, 23% of steel, which except for the outer shell of 3C products, internal structure Outside, or excellent materials for parts such as cars, aircraft.

4. Due to strength, the ratio is high: the ratio intensity of the magnesium alloy is significantly higher than that of aluminum alloy and steel, comparable to the stiffness and aluminum alloy and steel, but far more than the engineering plastic, 10 times the general plastic.

5. Vibration resistance: Under the same load, the vibration damping property is 100 times the aluminum, 300 to 500 times the titanium alloy.
