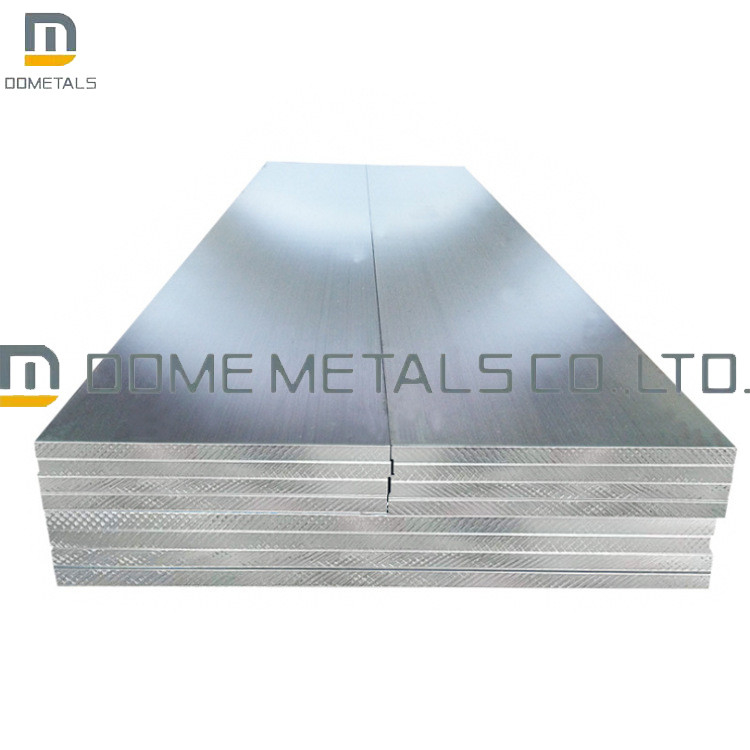

Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving

Product Details:

Place of Origin:	Zhengzhou,China
Brand Name:	DOME
Certification:	ISO9001,CE,SGS
Model Number:	DM004

Payment & Shipping Terms:

Minimum Order Quantity:	10Pcs
Packaging Details:	In carton, wooden case
Delivery Time:	3-25 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Product Name:	Magnesium Alloy Plate	Chemical Composition:	Al Zn Mn Mg
Alloy Or Not:	Alloy	Shape:	Sheet Plate Bar Board
Extrusion Plate Thickness:	5mm-105 Mm	Extrusion Plate Width:	10 Mm-400 Mm
Rolled Plate Thickness:	0.3mm-5mm	Rolled Plate Width:	10mm-500mm
High Light:	Hot Stamping Magnesium Alloy sheet , AZ31 Magnesium Alloy Plate Sheet , Aerospace Etching Engrving Magnesium Alloy plate

Hot Stamping AZ31 Magnesium Alloy Plate Sheet for Aerospace Etching Engrving

Name: Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving
Brand: DOME
SKU: DM004
Price: 1 USD
Availability: InStock
Rating: 4.9 (118 reviews)

Magnesium alloy plate can be used in all kinds of field.
1. Magnesium alloy plate are used to make satellites, lunar landing aircraft bases, exterior panel of missile and rocket and the empennage of missile and plane.
2. Magnesium alloy middle board are used to make the auxiliary tank ,side board and other structure of battleplane.
3. Cast sheet of magnesium alloy:
* The magnesium alloy are used on the train for vibration attenuation, seat and couchette framework lining board and goods shelf.
* The wide width usually requests between 1200-1800mm,and thickness between 1 and 1.5mm on cars’ front and rear panels, door
panels .
* The shell of 3C product, computer, mobile hard disk, CD, camea, acoustics, cell phone.
* Magnesium etching has replaced copper plate in printing and printing plate industry, and average thickness of the plate is 5mm.
* Magnesium has been continuously used in electric tool and sport equipment.

Precision Magnesium Alloy Plates are lightweight, fast etching and environmentally friendly. They are used for foil stamping,

embossing, thermal dies, flexography, plaques, awards, rubber stamp masters, fabric and leather embossing. Etching magnesium

plate, nitric acid corrosion, the surface can generate a layer of dense, continuous oxide layer, to prevent the internal magnesium

metal to continue the reaction. long-term placed in the air, will not corrode.
Technology of Magnesium Alloy Plate:

			Model

			Chemical Component(%):

			Type

			Mg

			Al

			Zn

			Mn

			Si

			Fe

			Cu

			AX31B

			residual

			2.5-3.5

			0.60-1.4

			0.20-1.0

			≤0.08

			≤0.003

			≤0.001

			AZ61A

			residual

			5.8-7.2

			0.40-1.5

			0.15-0.50

			≤0.10

			≤0.005

			≤0.005

			AZ80A

			residual

			7.8-9.2

			0.20-0.80

			0.12-0.50

			≤0.10

			≤0.005

			≤0.005

			AZ91D

			residual

			8.5-9.5

			0.45-0.90

			0.17-0.40

			≤0.08

			≤0.004

			≤0.00

Advantage of Magnesium Alloy Plate:

• Process: Semi-Casting & Hot Rolling, Hot Rolling.

• Size: 1.5mm - 10mm thickness, Width 580mm, Length 1000mm or can customized.

• Surface Treatment: Water Polishing & Machining, Perfect Clean & Bright & Flatness.

• Inspection of inner quality: By imported ultrasonic flaw detection inspection equipment UI-25.

Alloy Designation		Mechanical Properties
New Code	Old Code	Thickness (mm)	Tensile Strength Rm (N/mm²)	Yield Strength Rp0.2 (N/mm²)	Elongation (A%) 50mm
AZ31B		0.3-3.0	260	170	24.0
AZ31B		3.0-10.0	230	140	18.0
M2M	MB1	0.80-3.00	190	110	6.0
		3.00-5.00	180	100	5.0
		5.00-10.00	170	90	5.0
AZ40M	MB2	0.50-3.00	280	180	17.0
AZ40M	MB2	3.00-5.00	260	160	14.0
AZ41M	MB3	0.80-3.00	290	190	17.0
AZ41M	MB3	3.00-5.00	270	170	14.0
ME20M	MBB	0.80-3.00	250	170	21.0
ME20M	MBB	3.00-10.00	220	140	15.0

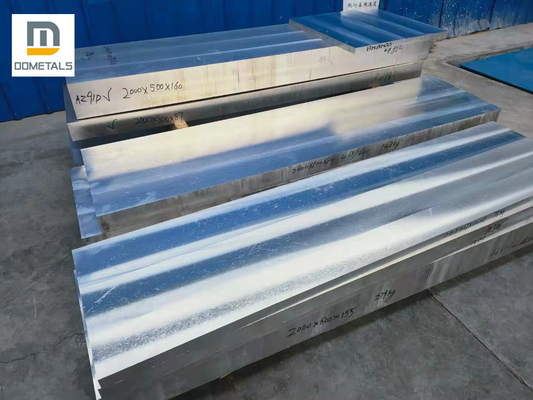

Hot Stamping AZ31 Magnesium Alloy Plate Sheet For Aerospace Etching Engrving 1
