| Place of Origin: | Zhengzhou,China |
| Brand Name: | DOME |
| Certification: | ISO9001,CE,SGS |
| Model Number: | DM004 |
| Minimum Order Quantity: | 10Pcs |
|---|---|
| Packaging Details: | In carton, wooden case |
| Delivery Time: | 3-25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product Name: | Magnesium Tooling Plate | Chemical Composition: | Al Zn Mn Mg |
|---|---|---|---|
| Alloy Or Not: | Alloy | Shape: | Sheet Plate Bar Board |
| Extrusion Plate Thickness: | 5mm-105 Mm | Extrusion Plate Width: | 10 Mm-400 Mm |
| Rolled Plate Thickness: | 0.3mm-5mm | Rolled Plate Width: | 10mm-500mm |
| High Light: | 5mm Magnesium Tooling Plate,Extruded Magnesium Tooling Plate,Magnesium Tooling Plate AZ31B |
||

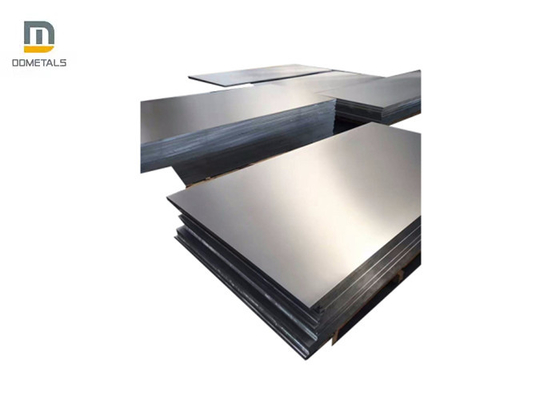

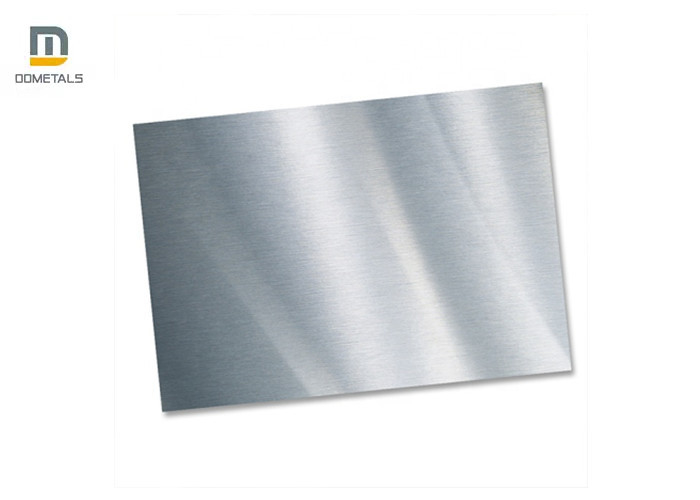

Our company produces high-quality extruded magnesium tooling plate or rolled magnesium tooling plate with complete specifications, including AZ31B, AZ 61, AZ 80, AZ 91, ZK 60, ZK 61, WE43, WE94 and other brands.
Extrusion plate: thickness 5mm-105 mm, width 10 mm-400 mm, can be customized according to special needs.
Rolled plate: thickness 0.3mm-5mm, width 10mm-500mm, can be customized according to special requirements.
magnesium tooling plate use: magnesium tooling plate are widely used in aerospace, electronics, 3C, chemical and other industries
| Alloy Designation | Mechanical Properties | ||||
| New Code | Old Code | Thickness (mm) | Tensile Strength Rm (N/mm²) | Yield Strength Rp0.2 (N/mm²) | Elongation (A%) 50mm |
| AZ31B | 0.3-3.0 | 260 | 170 | 24.0 | |
| 3.0-10.0 | 230 | 140 | 18.0 | ||
| M2M | MB1 | 0.80-3.00 | 190 | 110 | 6.0 |
| 3.00-5.00 | 180 | 100 | 5.0 | ||
| 5.00-10.00 | 170 | 90 | 5.0 | ||
| AZ40M | MB2 | 0.50-3.00 | 280 | 180 | 17.0 |
| 3.00-5.00 | 260 | 160 | 14.0 | ||
| AZ41M | MB3 | 0.80-3.00 | 290 | 190 | 17.0 |
| 3.00-5.00 | 270 | 170 | 14.0 | ||
| ME20M | MBB | 0.80-3.00 | 250 | 170 | 21.0 |
| 3.00-10.00 | 220 | 140 | 15.0 | ||
