| Place of Origin: | Zhengzhou,China |
| Brand Name: | DOME |
| Certification: | ISO9001,CE,SGS |
| Model Number: | DM004 |
| Minimum Order Quantity: | 10Pcs |
|---|---|
| Packaging Details: | In carton, wooden case |
| Delivery Time: | 3-25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product Name: | Magnesium Plate Price | Chemical Composition: | Al Zn Mn Mg |
|---|---|---|---|
| Alloy Or Not: | Alloy | Shape: | Sheet Plate Bar Board |
| Feature: | High Specific Strength, Lightest Metals | Material: | Magnesium Alloy，Magnesium Alloy Plate |
| Application: | Textile Printing Machinery, Engraving Plate | ||
| High Light: | AZ61A Magnesium Plate,98% Purity Magnesium Plate,Textile Printing Machinery Magnesium Plate |
||

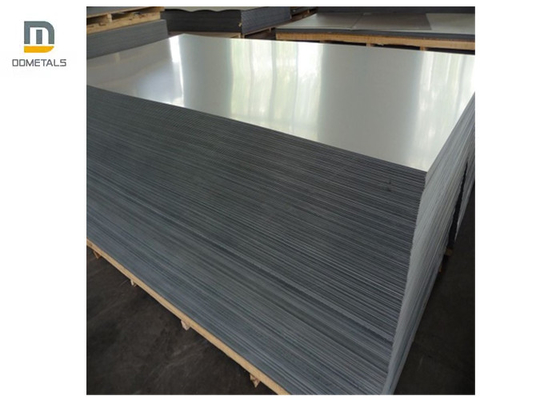

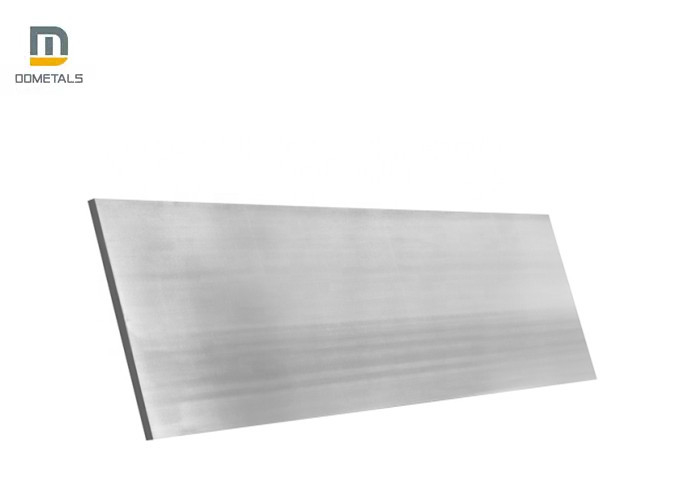

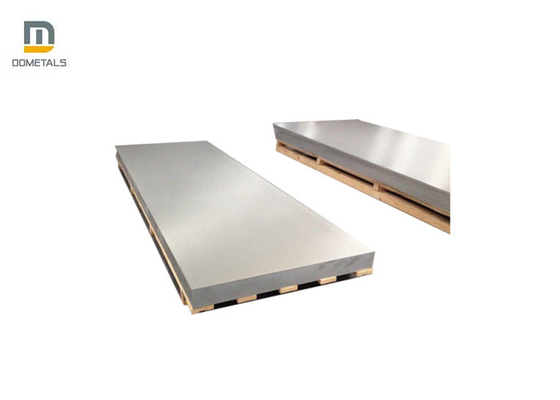

Our company produces high-quality extruded Magnesium Plate Price or rolled Magnesium Plate Price with complete specifications, including AZ31B, AZ 61, AZ 80, AZ 91, ZK 60, ZK 61, WE43, WE94 and other brands.
Due to the high thermal conductivity and low cutting force of the Magnesium Plate Price, the heat dissipation rate is fast during the machining process, the tool life is long, and the amount of sticking is small, thereby reducing tool costs and shortening the downtime required for tool replacement.
Because Magnesium Plate Price is easy to cut and its chip breaking performance is very good, generally only one finishing can achieve the required final surface finish.
| Alloy Designation | Mechanical Properties | ||||
| New Code | Old Code | Thickness (mm) | Tensile Strength Rm (N/mm²) | Yield Strength Rp0.2 (N/mm²) | Elongation (A%) 50mm |
| AZ31B | 0.3-3.0 | 260 | 170 | 24.0 | |
| 3.0-10.0 | 230 | 140 | 18.0 | ||
| M2M | MB1 | 0.80-3.00 | 190 | 110 | 6.0 |
| 3.00-5.00 | 180 | 100 | 5.0 | ||
| 5.00-10.00 | 170 | 90 | 5.0 | ||
| AZ40M | MB2 | 0.50-3.00 | 280 | 180 | 17.0 |
| 3.00-5.00 | 260 | 160 | 14.0 | ||
| AZ41M | MB3 | 0.80-3.00 | 290 | 190 | 17.0 |
| 3.00-5.00 | 270 | 170 | 14.0 | ||
| ME20M | MBB | 0.80-3.00 | 250 | 170 | 21.0 |
| 3.00-10.00 | 220 | 140 | 15.0 | ||
