| Place of Origin: | Zhengzhou,China |
| Brand Name: | DOME |
| Certification: | ISO9001,CE,SGS |
| Model Number: | DM004 |
| Minimum Order Quantity: | 10Pcs |
|---|---|
| Price: | USD10-30/KG |
| Packaging Details: | In carton, wooden case |
| Delivery Time: | 3-25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Shape: | Plate，Sheet | Application: | Industrial |
|---|---|---|---|
| Material: | Magnesium | Chemical Composition: | Magnesium,Mg |
| Dimensions: | According To Demand | Product Name: | Magnesium Alloy Plate |
| Color: | Silver Grey | Size: | Customers' Requirements |
| Purity: | 99.9% | Standard: | ISO9001,CE,SGS |
| Alloy Or Not: | Alloy | Type: | ZK60A AZ31B AZ61A AZ80A WE43B M1C MIA |
| Name: | Magnesium Plate AZ59 | Usage: | Used In Alloying Etc. |
| High Light: | Silver Grey AZ31B Magnesium Alloy,AZ31B Magnesium Tooling Plate,Magnesium Tooling Plate SGS |
||

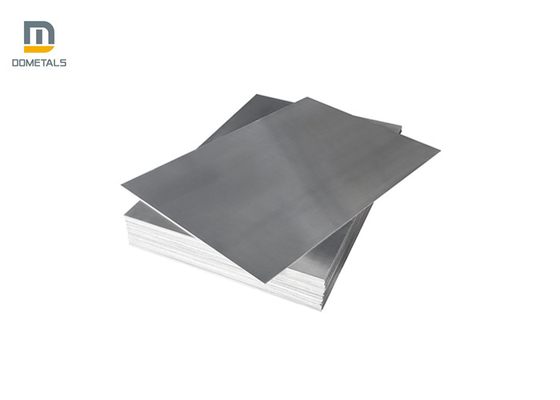

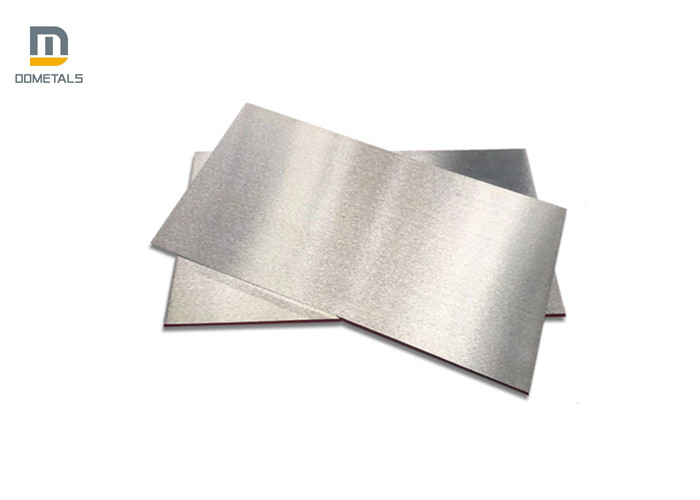

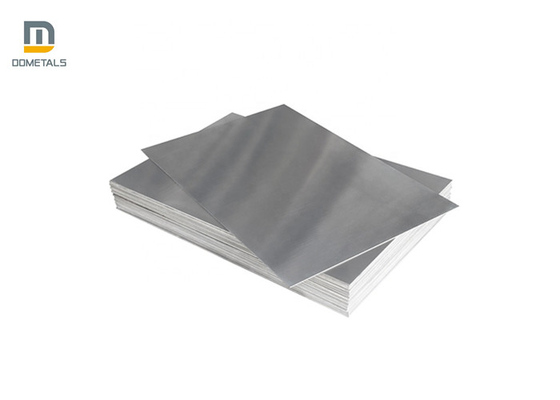

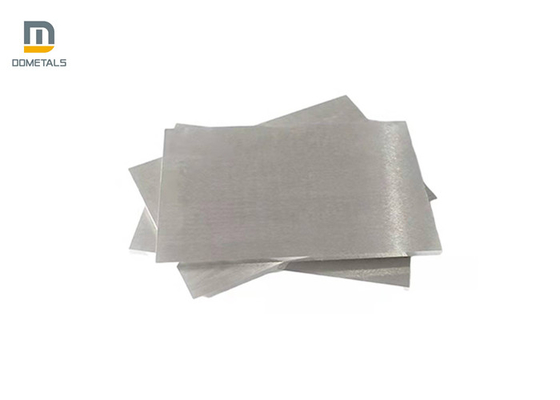

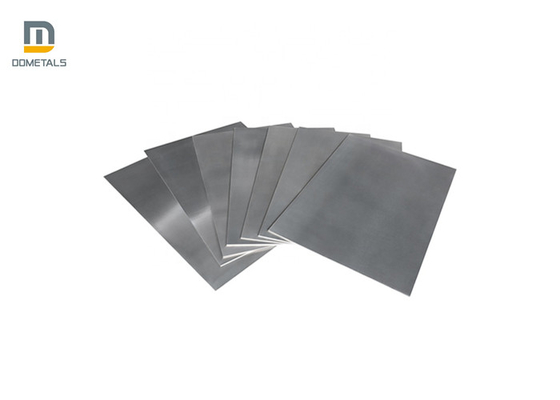

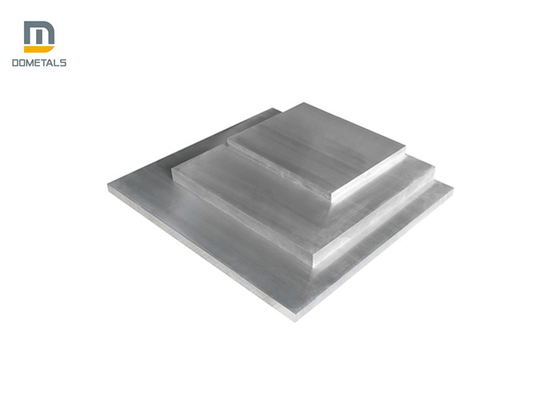

Profession Customized Magnesium Alloy Plate/Sheet Magnesium Alloy AZ31B
Magnesium alloy parts have high stability. Die casting parts have high dimensional accuracy in the casting line and can be processed with high precision.
Magnesium alloy has good die-casting forming performance, and the wall thickness of die-casting parts can be as small as 0.5mm. It is suitable for manufacturing all kinds of die-casting parts of automobiles.
However, the coefficient of linear expansion of magnesium alloy is very large, reaching 25~26 μm/m℃, while that of aluminum alloy is 23 μm/m℃, brass is about 20 μm/m℃, structural steel is 12 μm/m℃, and cast iron is about 10 μm/m. m℃, rock (granite, marble, etc.) is only 5-9 μm/m℃, and glass is 5-11 μm/m℃.
| Alloy Designation | Mechanical Properties | ||||
| New Code | Old Code | Thickness (mm) | Tensile Strength Rm (N/mm²) | Yield Strength Rp0.2 (N/mm²) | Elongation (A%) 50mm |
| AZ31B | 0.3-3.0 | 260 | 170 | 24.0 | |
| 3.0-10.0 | 230 | 140 | 18.0 | ||
| M2M | MB1 | 0.80-3.00 | 190 | 110 | 6.0 |
| 3.00-5.00 | 180 | 100 | 5.0 | ||
| 5.00-10.00 | 170 | 90 | 5.0 | ||
| AZ40M | MB2 | 0.50-3.00 | 280 | 180 | 17.0 |
| 3.00-5.00 | 260 | 160 | 14.0 | ||
| AZ41M | MB3 | 0.80-3.00 | 290 | 190 | 17.0 |
| 3.00-5.00 | 270 | 170 | 14.0 | ||
| ME20M | MBB | 0.80-3.00 | 250 | 170 | 21.0 |
| 3.00-10.00 | 220 | 140 | 15.0 | ||
