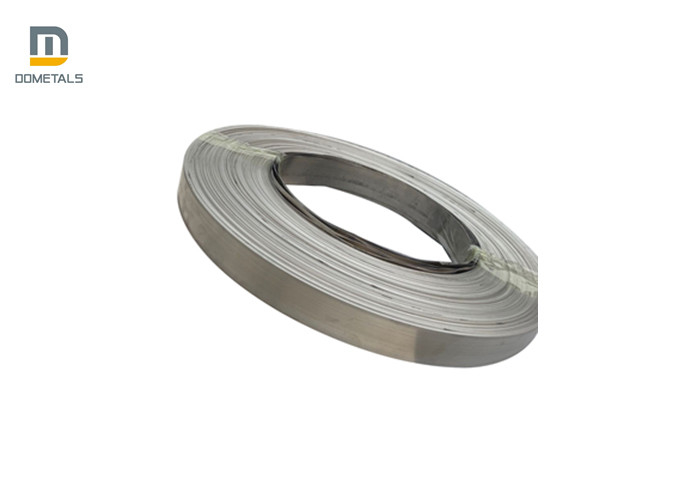

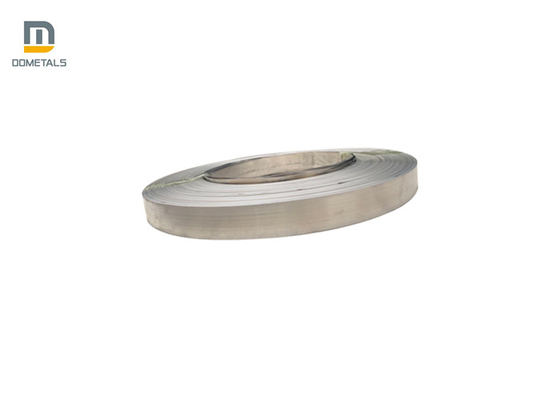

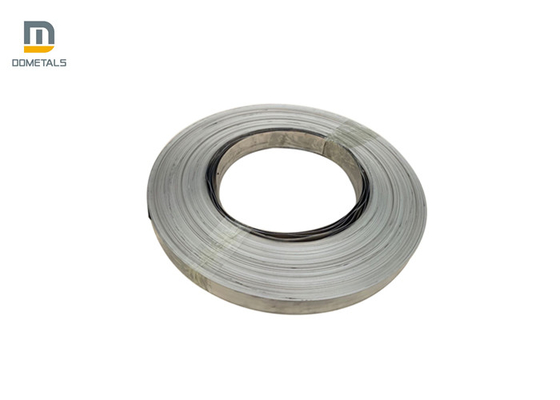

Name: CNC Engraving Magnesium Alloy Foil 0.08mm 0.1mm 0.2mm 1mm
Brand: DOME
SKU: DM014
Price: 10 USD
Availability: InStock
Rating: 4.5 (164 reviews)

Home Products Magnesium Alloy Sheet

CNC Engraving Magnesium Alloy Foil 0.08mm 0.1mm 0.2mm 1mm

Product Details:

Place of Origin:	Zhengzhou,China
Brand Name:	DOME
Certification:	ISO9001; CE
Model Number:	DM014

Payment & Shipping Terms:

Minimum Order Quantity:	10Kg
Price:	USD10~30/KG
Packaging Details:	In carton, on pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Material::	Magnesium Alloy	Type:	AZ31B, AZ91, AZ80
Application:	CNC Engraving, Embossing, Etching, Stamping	Industrial:	Computer, Printing, Camera, Cellphone
Color:	Sliver	Customized:	As Required
High Light:	CNC Engraving Magnesium Alloy Foil , 0.08mm 0.1mm Magnesium Foil , CNC Engraving Magnesium Foil

magnesium sheet magnesium foil 0.08mm 0.1mm 0.2mm 1mm Accept Custom

Product Name	Lighter Stronger Cheaper Magnesium Alloy Round Bar
Standard	AMS/ASTM/JIS/BS/ISO
Alloy	AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ80A
Diameter	φ3mm-φ600mm
Length	Customized
Application	transportation (automobiles, motorcycles, bicycles, rail transit, aviation); electronic products (computers, mobile phones, digital cameras, etc.); medical equipment (wheelchairs, crutches, rehabilitation fitness equipment, etc.) aerospace; textile High standards and diversified demands in the fields of printing machinery and automobiles.
Lead time	3 to 25 working days
Packing	Wooden pallet or according to customer's request

Specification of magnesium alloy:
Magnesium Alloy Plates/sheet	classify	specification
	Brand	AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A
	Sheet	Thickness:0.3-7.9mm Customized Max.width 600mm
	Medium and heavy plate	Thickness:8-15mm Customized Max.width 1500mm
	Thick plate	Thickness:15-200mm Customized Max.width 3000mm
Magnesium Alloy Bar/Rod	Brand	AZ31B/ZK60A/AZ91D/AZ61A/AZ40M/AZ41M/AZ80A/Mg99.95
	Extrusion Bar	φ3-φ130*3000(Customized)
	Cast round bar billet	φ93-φ600*4500(Customized)
Magnesium alloy profiles	Size	Customized

Chemical Composition Of Magnesium Alloy Plate/Sheet :

ASTM B107/B107-13 ASTM B93/B93M	AZ31B	ZK60A	AZ61A	AZ80A
Al %	2.50-3.50	--------	5.80-7.20	7.80-9.20
Ca %	0.04max	--------	--------	--------
Mn %	0.20-1.00	--------	0.15-0.50	0.12-0.50
Cu %	0.01max	--------	0.05max	0.05max
Fe %	0.005max	--------	0.005max	0.005max
Si %	0.10max	--------	0.10max	0.10max
Zn %	0.60-1.40	4.8-6.2	0.40-1.50	0.20-0.80
Ni %	0.005max	--------	0.005max	0.005max
Others each %	--------	--------	--------	--------
Others total%	0.30max	0.30max	0.30max	0.30max
Mg	BALANCE	BALANCE	BALANCE	BALANCE

tensile requirements Of Magnesium Alloy Plate/Sheet :

Magnesium Alloy	Mechanical Property			Application
ASTM	tensile strength(N/MM2)	Yield strength(N/mm)	Elongation	--
AZ31B	230~290	170~210	10~24	Standard extrusion alloy
AZ61A	270~390	190~240	9~15	High strength extrusion alloy
AZ80A	330~360	230~250	8~10	High strength extrusion alloy
