| Place of Origin: | Zhengzhou,China |
| Brand Name: | DOME |
| Certification: | ISO9001,CE,SGS |
| Model Number: | DM011 |
| Minimum Order Quantity: | 10KG |
|---|---|
| Price: | USD30~50/KGS |
| Packaging Details: | In carton, on pallet |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | Magnesium Alloy | Delivery Time: | 7-15 Days |
|---|---|---|---|
| Diameter: | 0.5-5.0 Mm | Color: | Silver Grey |
| Application: | Welding | Surface: | Smooth |
| High Light: | AZ61 Magnesium Alloy Welding Wire,3.60% Innershield Welding Wire,AZ31 Innershield Welding Wire |
||

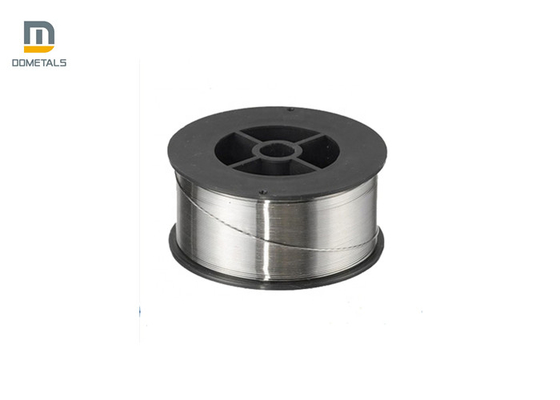

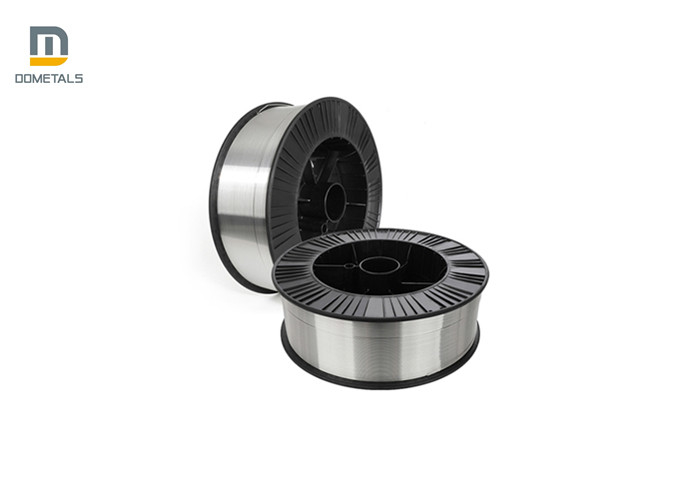

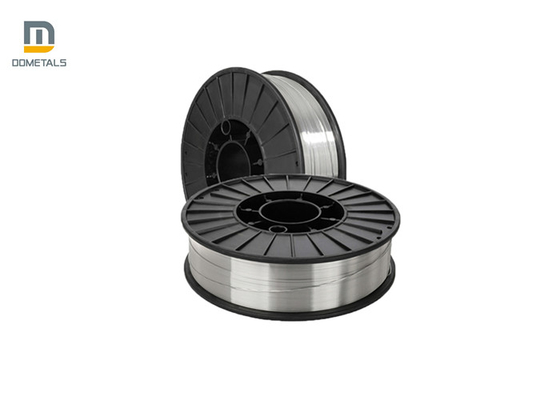

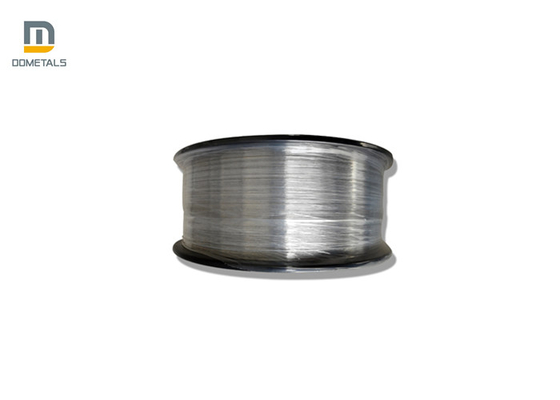

Magnesium alloy Welding Wire AZ31 Mg Al Alloy mig welding wire
Magnesium alloy welding wire is use in all kinds of forging Mg alloy and cast Mg alloy,
such as: optical instrument, aerospace, automobile spare parts, magnesium products for civil use, and handiwork welding.
Chemical Composition
| AZ31S | GB/T 5153 | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 2.40 | 0.50 | 0.15 | |||||
| Max% | 3.60 | 1.50 | 0.4 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ61S | GB/T 5153 | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 5.50 | 0.5 | 0.15 | |||||
| Max% | 6.50 | 1.50 | 0.40 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
Specification
| AZ31S | φ1.2mm, φ1.6mm, φ2.0mm, φ4.0mm |
| AZ61S | φ1.2mm, φ1.6mm, φ2.0mm, φ4.0mm |
| AZ91D | φ1.2mm, φ1.6mm, φ2.0mm, φ4.0mm |
| AZ92A | φ1.2mm, φ1.6mm, φ2.0mm, φ4.0mm |
We supply Magnesium alloy sheet with competitive price and quality.
| Alloy | Thickness(mm) |
Tensile strength Rm (N/mm²) |
Yield strength Rp0.2 (N/mm²) |
Elongation (A%) 50mm |
| AZ31B | 0.3-3.00 | 260 | 170 | 24.0 |
| 3.00-10.00 | 230 | 140 | 18.0 | |
|
M2M |
0.80-3.00 | 190 | 110 | 6.0 |
| 3.00-5.00 | 180 | 100 | 5.0 | |
| 5.0-10.00 | 170 | 90 | 5.0 | |
| AZ40M | 0.50-3.00 | 280 | 180 | 17.0 |
| 3.00-5.00 | 260 | 160 | 14.0 | |
| 0.80-3.00 | 290 | 190 | 17.0 | |
| 3.00-5.00 | 270 | 170 | 17.0 | |
| M1A | 0.80-3.00 | 250 | 170 | 21.0 |
| 3.00-10.00 | 220 | 140 |
15.0 |
