| Place of Origin: | Zhengzhou,China |
| Brand Name: | DOME |
| Certification: | ISO9001,CE,SGS |
| Model Number: | DM005 |
| Minimum Order Quantity: | 10Pcs |
|---|---|
| Packaging Details: | In carton, wooden case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Place Of Origin: | China | Application: | Machinery |
|---|---|---|---|
| Process: | Die Casting | Standard: | GB ASTM AISI DIN |
| Packing: | Carton | Product Name: | Custom Die Cast Auto Part |
| Surface Treatment: | Painting | Machining Process: | Casting-deburring-surface Treatment |
| High Light: | Machining Magnesium Alloy Car Hood,Die Casting Magnesium Alloy Car Hood,ZM2 Magnesium Alloy Car Hood |
||

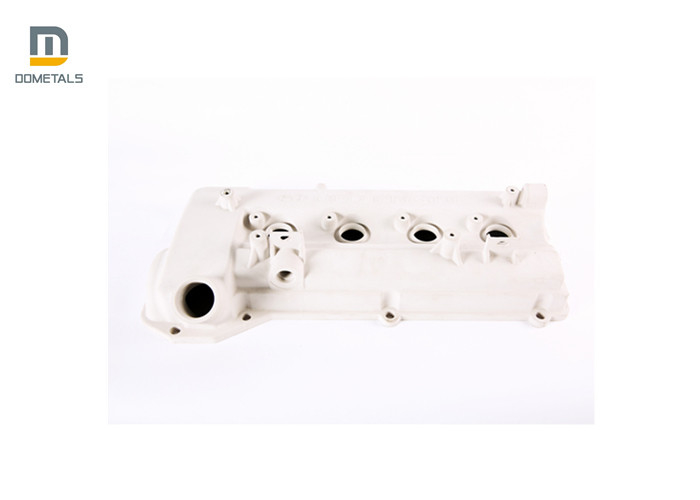

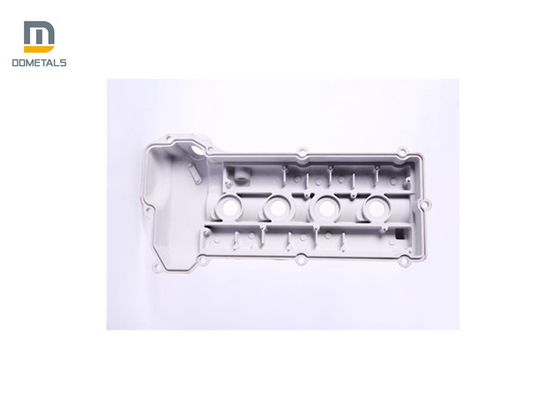

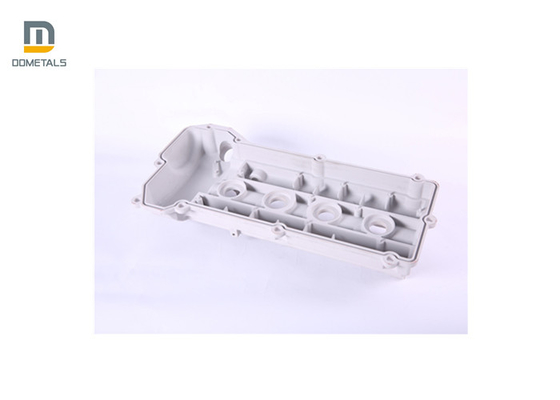

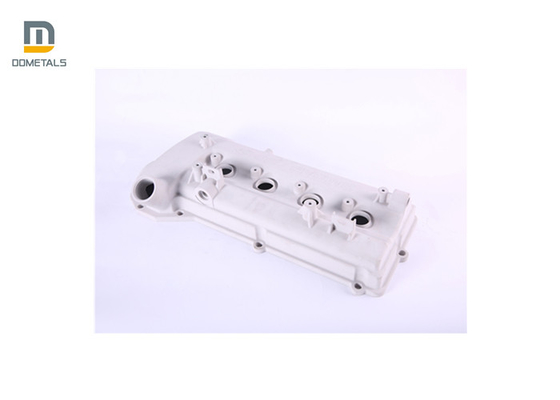

magnesium alloy die casting housing, magnesium die casting cover, magnesium die casting parts
Process flowing chart:
Drawing or Sample→Making Mould→Making samples→ casting→Deburriing→Second Machining
Drilling and thread,CNC machining)→Surface treatment(Polising,Anodized,powder
coating,paint,E-blacking)→Assembly and Packing→Shipped→
The inspection will be through each process step.
The material mechanical property of OEM magnesium alloy casting parts of bracket
| Mg alloy code | Temperature/ºC | Tensile/MPa | Yield/MPa | Elongation/% | MOE/GPa | Standard |
| ZM1 | RT | 235 | 140 | 5 | 42 | GB 1177 |
| ZM2 | RT | 200 | 135 | 2 | 42 | GB 1177 |
| ZM3 | RT | 120 | 85 | 1.5 | 44 | GB 1177 |
| ZM4 | RT | 140 | 95 | 2 | 43 | GB 1177 |
| ZM5 | RT | 230 | 100 | 2 | 44 | GB 1177 |
| ZM6 | RT | 230 | 135 | 3 | 43 | GB 1177 |
| AM60 | RT | 220 | 130 | 6 | - | ASTM B94 |
| AZ91 | RT | 230 | 150 | 3 | - | ASTM B94 |
| WE43 | RT | 250 | 150 | 2 | 45 | ASTM B80 |
| 250 | 180 | 130 | 4 | - | - | |
| WE54 | RT | 260 | 160 | 2 | 45 | ASTM B80 |
| 250 | 190 | 140 | 4 | - | - | |
| Mg-Gd-Y-X | RT | 300 | 260 | 2 | 45 | - |
| 250 | 250 | 210 | 5 | - | - | |
| 350 | 200 | 160 | 10 | - | - |
