| Place of Origin: | Zhengzhou,China |
| Brand Name: | DOME |
| Certification: | ISO9001,CE,SGS |
| Model Number: | DM013 |
| Minimum Order Quantity: | 10kg |
|---|---|
| Price: | USD10-30/kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Magnesium Content: | 99.9% | Type: | AZ31B, AZ61, AZ80 |
|---|---|---|---|
| Shape: | Rod | Color: | Metallic |
| Process: | Semi-Casting & Hot Rolling | Application: | Carving, Aerospace, 3C Products |
| Startand: | American Standard, ASTM G-97 | ||
| High Light: | DOME Magnesium Alloy Rod,Mg Ingot ME20M AZ40,DOME Magnesium Alloy Rod |
||

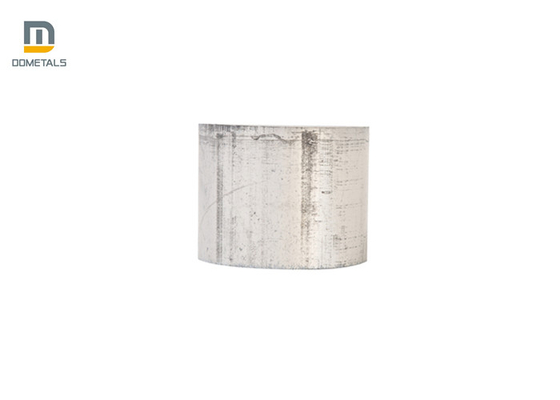

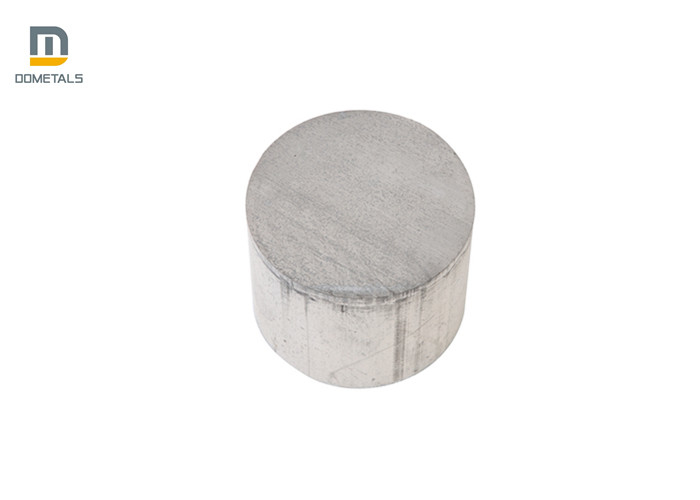

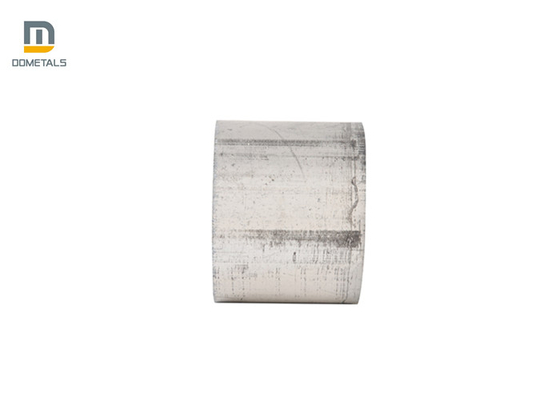

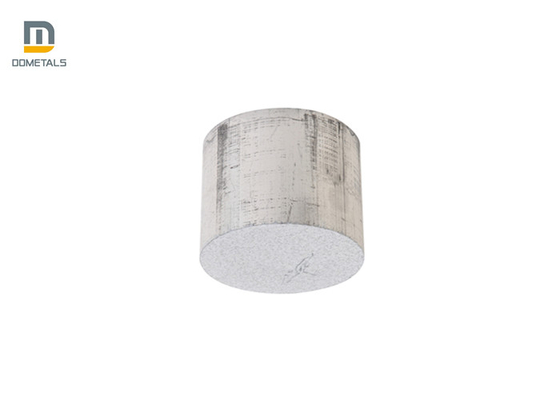

Mg Ingot Magnesium Round Bar For Balance Weight , Target , Military Industry
Mg ingot magnesium alloy bar in aerospace applications wholesales
1. Magnesium alloy Ingredients: Main material composition: AZ31B, ZK61M, AZ80A, AZ91D, M2M, ME20M, AZ40 other materials can be produced according to customer requirements.
2. Appearance: through the quality control of the layers of control, the company also requires packaging staff in the product packaging while controlling the appearance of the product is good. Carefully screened to ensure quality assurance.
Magnesium Alloy Bar Main Used for Balance weight, target, Military industry and so on. It is the lightest in the practical metal, high strength, high rigidity, and also has Good shock absorption performance.
Magnesium Alloy Chemical composition:
| Alloy Element | Type | Chemical Composition% | Other elements b | ||||||||||||
| Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Sub-total | total | ||
| MgAlZn | AZ31B | Balance | 2.5-3.5 | 0.6-1.4 | 0.1-0.2 | --- | --- | ≦0.08 | ≦0.003 | ≦0.04 | ≦0.01 | ≦0.001 | --- | ≦0.05 | ≦0.30 |
| AZ40M | Balance | 3.0-4.0 | 0.2-0.8 | 0.15-0.5 | --- | --- | ≦0.10 | ≦0.05 | --- | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 | |
| AZ80A | Balance | 7.8-9.2 | 0.2-0.8 | 0.12-0.5 | --- | --- | ≦0.10 | ≦0.005 | --- | ≦0.05 | ≦0.005 | --- | --- | ≦0.30 | |
| AZ91D | Balance | 8.5-9.5 | 0.45-0.9 | 0.17-0.4 | --- | --- | ≦0.08 | ≦0.004 | --- | ≦0.025 | ≦0.001 | 0.0005- 0.003 |
≦0.01 | ≦0.30 | |
| MgMn | M2M | Balance | ≦0.20 | ≦0.30 | 1.3-2.5 | --- | --- | ≦0.10 | ≦0.05 | --- | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.20 |
| MgZnZr | ZK61M | Balance | ≦0.05 | 5.0-6.0 | ≦0.10 | --- | 0.3-0.9 | ≦0.05 | ≦0.05 | --- | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| MgMnRe | ME20M | Balance | ≦0.20 | ≦0.30 | 1.32-2.2 | 0.15-0.35 | --- | ≦0.10 | ≦0.05 | --- | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.30 |
Compared with conventional casting magnesium alloys, semi-continuous casting magnesium alloys are finer in the organization, more uniform on the ingredients, and more compact inside with higher strength and elongation.
1. By pipetting and secondary refining, the Mg alloys have high purity and low impurity. The magnesium liquid pouring directly from the heat holding furnace crystallize rapidly to improve the compactness of internal microstructure of the Mg rods. The internal crystal are more compact , and the physical performance is greatly enhanced compared to conventional casting products.
2. The flux slag content of finished products tends to zero. Using the emerging insert gas protective devices, the flux slag content are greatly reduced and product quality is improved. In traditional process, the smelting process is completely exposed to the air, and the flame is retardant only by flux and other flame retardant materials.
3. Smooth surface. Clean. No porosity, shrinkage or slag.
4. Flexible length. The existing maximum diameter is 600mm. It can be skinned and cut according to customers' requirements. In addition, other products with different specifications can be produced to meet customers needs. We can also produce various specifications of Mg alloy flat bars by semi-continuous casting.
